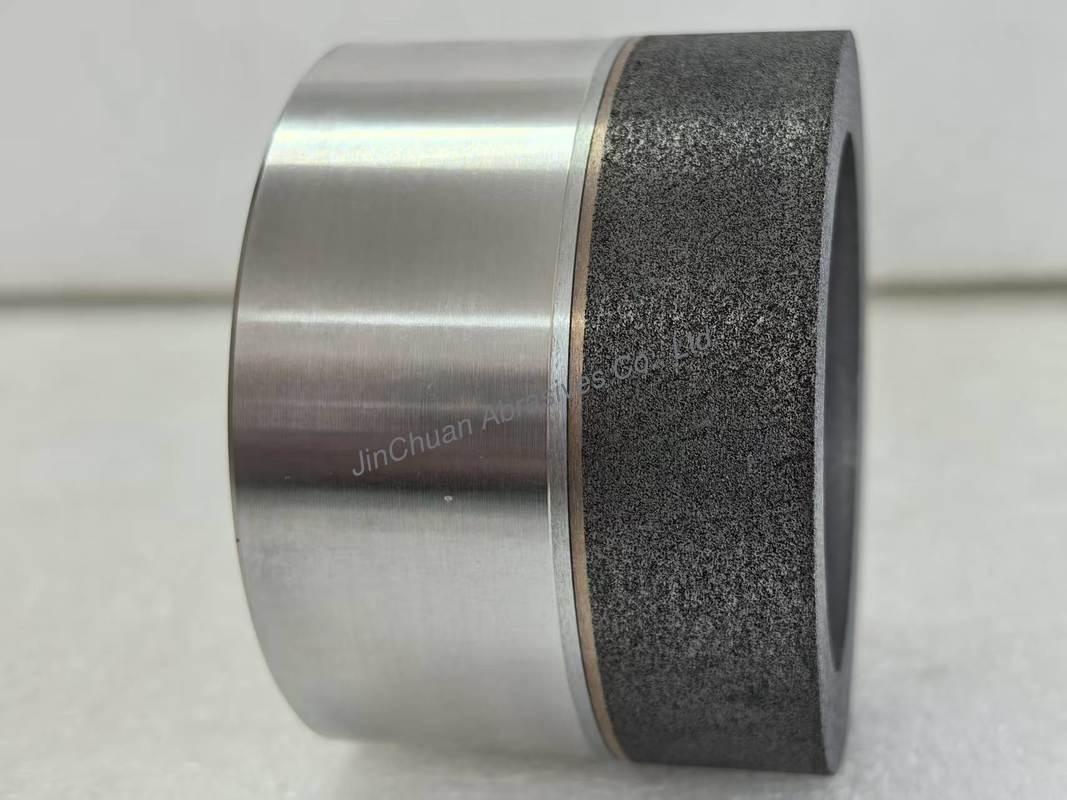

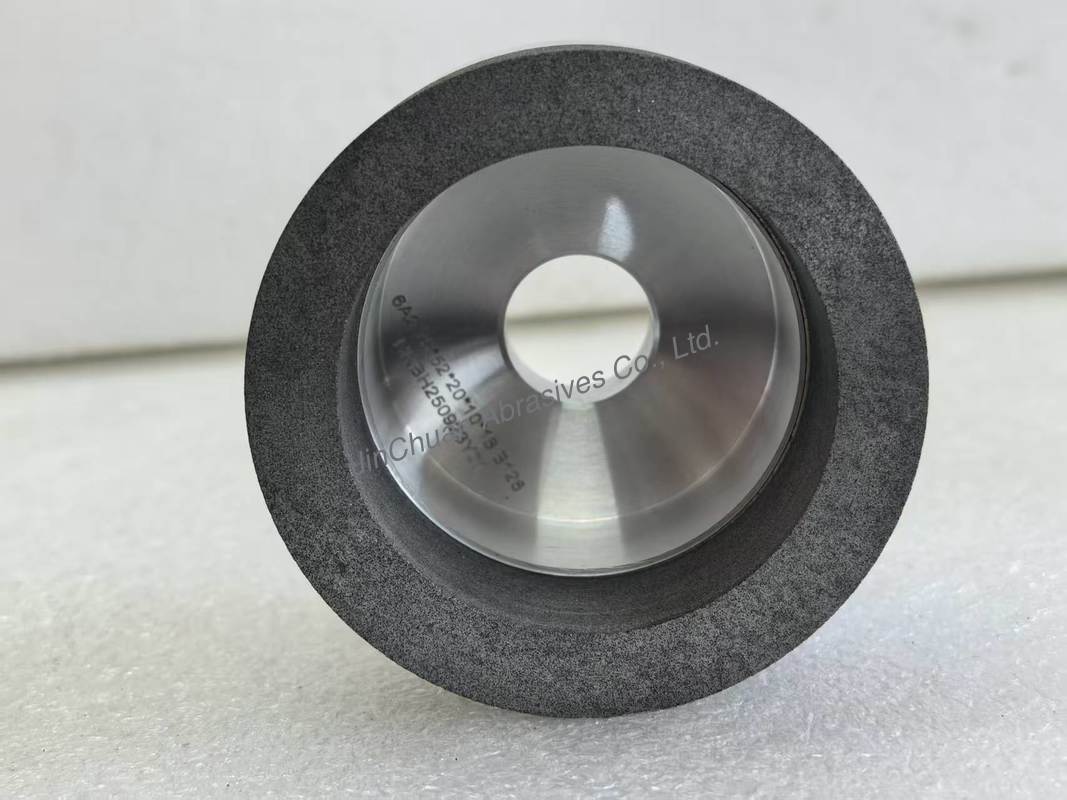

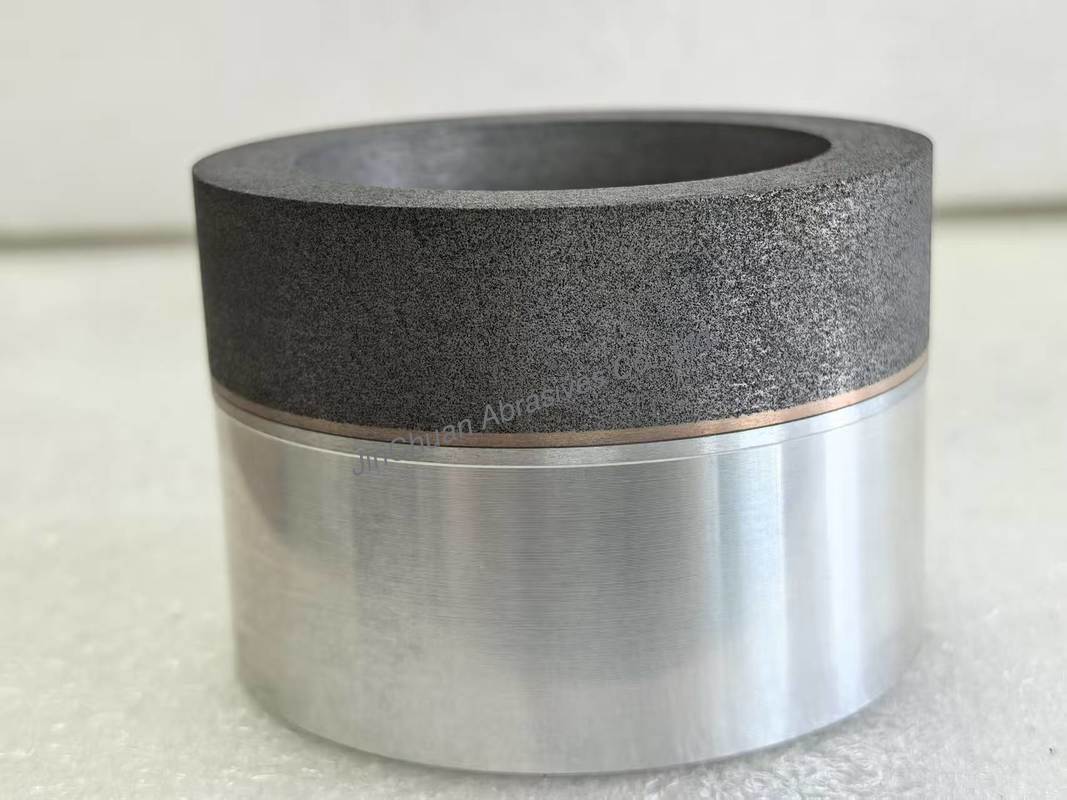

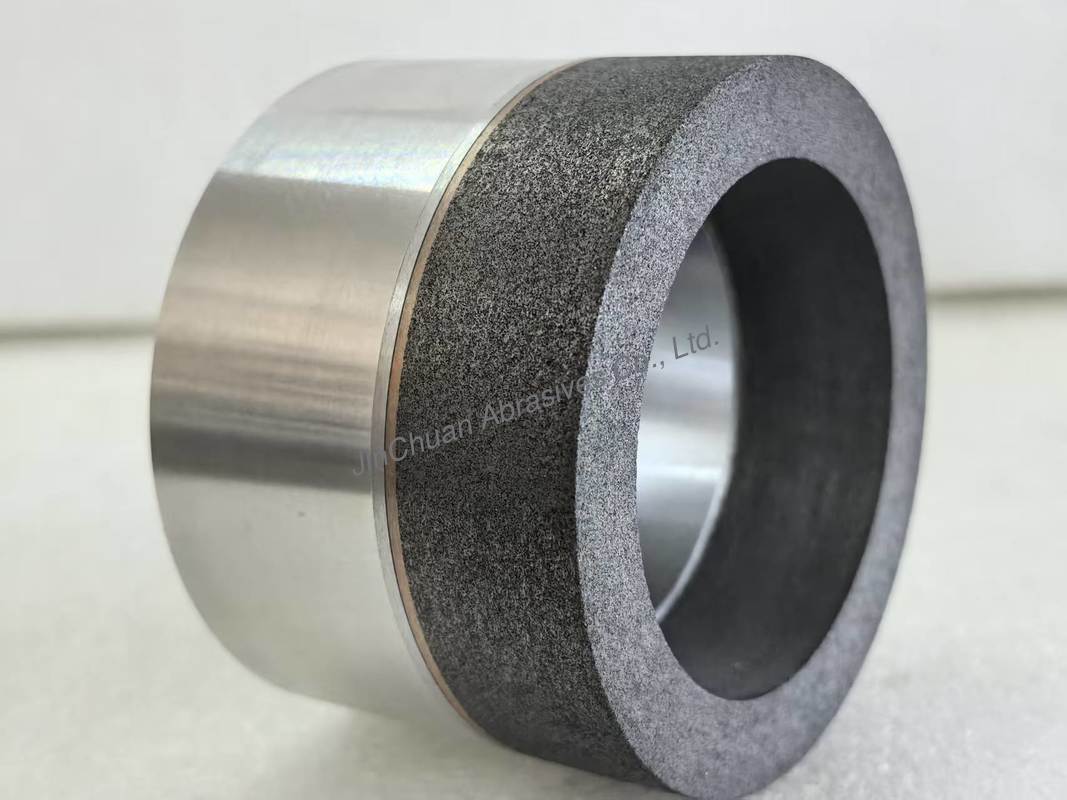

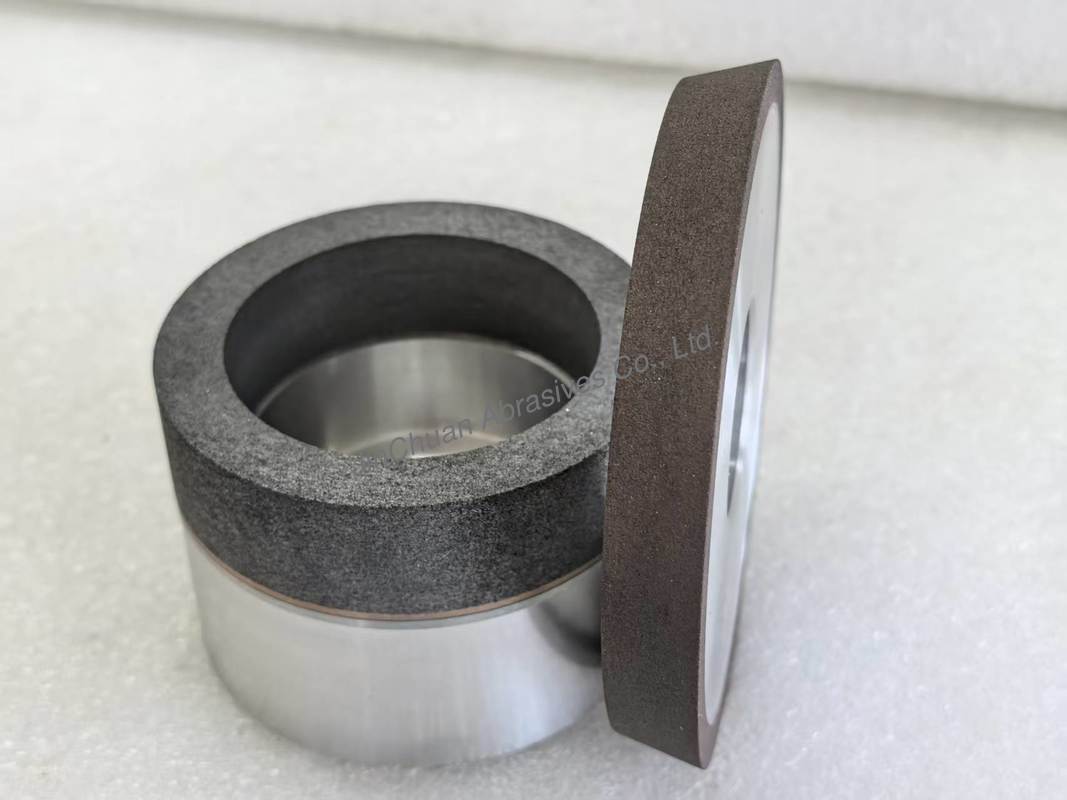

6A2 Hybrid Wheel Cup Shape Hybrid CBN Grinding Wheel For CNC Tool Grinding Machines

6A2 Hybrid Wheel Cup Shape Hybrid Grinding Wheel For CNC Tool Grinding Machines

A hybrid diamond grinding wheel** combines different types of diamond abrasives or bonding materials to optimize performance for specific grinding applications. These wheels leverage the strengths of multiple abrasive technologies to improve efficiency, lifespan, and surface finish.

hybrid wheels are ideal for the high efficiency flute grinding and gashing of HSS and tungsten carbide tools.

Hybrid grinding wheel integrates two or more types of diamond grains, bonds (resin, metal, or vitrified), or structures** to enhance grinding performance in challenging materials like **carbide, ceramics, glass, and composites

Main Advantages of hybrid wheel

✔ **Longer lifespan** – Optimized bond and grit combinations reduce wear.
✔ **Better surface finish** – Fine abrasives or resin bonds improve finish quality.
✔ **Higher material removal rate (MRR)** – Coarse segments speed up grinding.
✔ **Versatility** – Can grind multiple materials without wheel changes.
✔ **Cost efficiency** – Reduces downtime and wheel replacement frequency.

Applications

- **Carbide tool grinding** (e.g., end mills, inserts)
- **Ceramic & glass machining**
- **Precision grinding of composites** (CFRP, GFRP)
- **Aerospace & automotive components**
- **Electronics (semiconductor wafer processing)**

high quality diamond raw material

good self-sharpening

excellent grinding effect

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you

NOTE: We have over 1000 types of diamond cbn grinding wheels, if the grinding wheel you are using is not found here, please send us your grinding wheel picture and contact us with your details.
